Parameter name

Technical indicators

illustrate

Structural form

Split structure, omnidirectional testing

Wind speed range

0-20m/s (0-30m/s can be customized)

Wind speed accuracy

± (0.1+2% reading) or 2% range, whichever is greater

Wind speed resolution

0.01m/s

Response time

0.2s

(t63, 1m/s wind speed, 25°C)

Adaptation test module

Optional JT6070, JT6071

Supply voltage

Refer to the selected test module

Air temperature range

-20-60°C

Air temperature accuracy

±1°C (<1m/s); ±0.5°C (>1m/s)

Air temperature resolution

0.1℃

Usage Environment

Probe -25—80°C; 0—90%RH

In non-condensing state

Temperature compensation

-25—80°C

Interface

Bare wire connector

Structural Materials

Stainless steel

Protection level

IP54

Storage temperature

-30—80°C

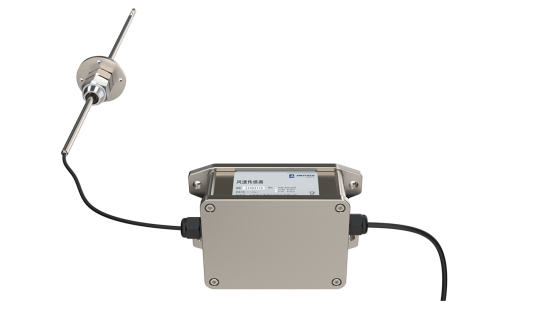

Test Module/Transmitter Specifications

model

JT6070

JT6071

Output

RS485 (optional 0-10V; 4-20mA)

show

none

OLED Display

Supply voltage

DC9V-36V

Rated power consumption

＜0.8W

＜1W

Usage Environment

-25—70°C; 0—100%RH

Interface

Bare wire connector

Material

ABS

Aluminum Alloy

Protection level

IP65

Storage temperature

-30—80°C
