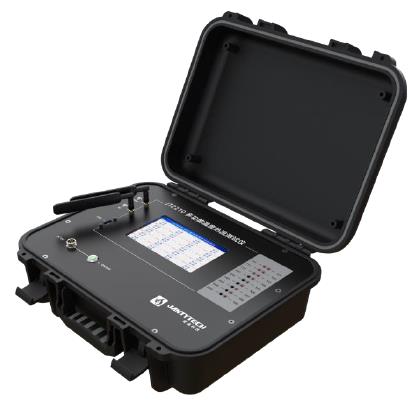

Host technical parameters:
project
|
parameter
|
Accessibility
|
Wired sensors: 12pcs temperature sensors and 6pcs heat flow sensors;
Wireless sensor (optional): 6 temp-heat flow modules, 6 temp wireless modules
|
size
|
430x340x165mm
|
storage
|
External U disk storage, cycle 1~60min can be set
|
show
|
Color touch screen, 7 inches, resolution 800×480 pixels
|
battery life
|
>48 hours (storage once every 5 minutes, remote wireless work once every hour)
|
way of communication
|
The sensor → Host with Zigbee The Host → cloud platform with 4G
|
Power supply
|
DC12V/built-in lithium battery
|
use environment
|
-10~50℃
|
Temperature sensor (wired):
project
|
parameter
|
illustrate
|
temperature range
|
-20~85℃
|
? |
temperature accuracy
|
±0.5℃
|
±0.2°C (10~50°C)
|
temperature resolution
|
0.1°C
|
? |
Package form
|
metal flat
|
? |
Heat flow sensor (wired):
project
|
parameter
|
Test Range
|
-2000~+2000W/m2
|
heat flow coefficient
|
≦23.26W/m2·mV
|
Response time
|
10S
|
Test accuracy
|
Less than ±5%
|
heat flow resolution
|
≦0.1W/m2
|
Wireless temperature and heat flow recorder:
project
|
parameter
|
storage
|
More than 20000 groups
|
wakeup interval
|
20s~60min
|
power consumption
|
>96 hours (5 minutes storage interval)
|
communication
|
Zigbee
|
temperature test
|
Range -20~85°C; Resolution 0.1°C; Accuracy ±0.5°C
|
heat flow test
|
Range -2000~+2000W/m2; resolution 0.1W/m2; accuracy ±5% of reading
|
Wireless temperature recorder:
project
|
parameter
|
storage
|
More than 20000 groups
|
wakeup interval
|
20s~60min
|
power consumption
|
DC5V; battery life > 1 month (recorder mode, wireless off)
|
communication
|
Zigbee
|
temperature test
|
Range -20~85℃; resolution 0.1℃
|
temperature accuracy
|
±0.5℃
|
resolution
|
0.1°C
|
